Results of a Data Matrix inspection

The following figures show the results of a Data Matrix inspection.

Overview on production sample tab

On the Production sample tab, you can see the overall rating of the Data Matrix code. The color of the Data Matrix code indicates if the quality of the Data Matrix code falls within the defined minimum quality thresholds. In the following example, the default colors are used: green for acceptable, red for unacceptable. These colors are customizable and may be different on your EyeC Proofiler system.

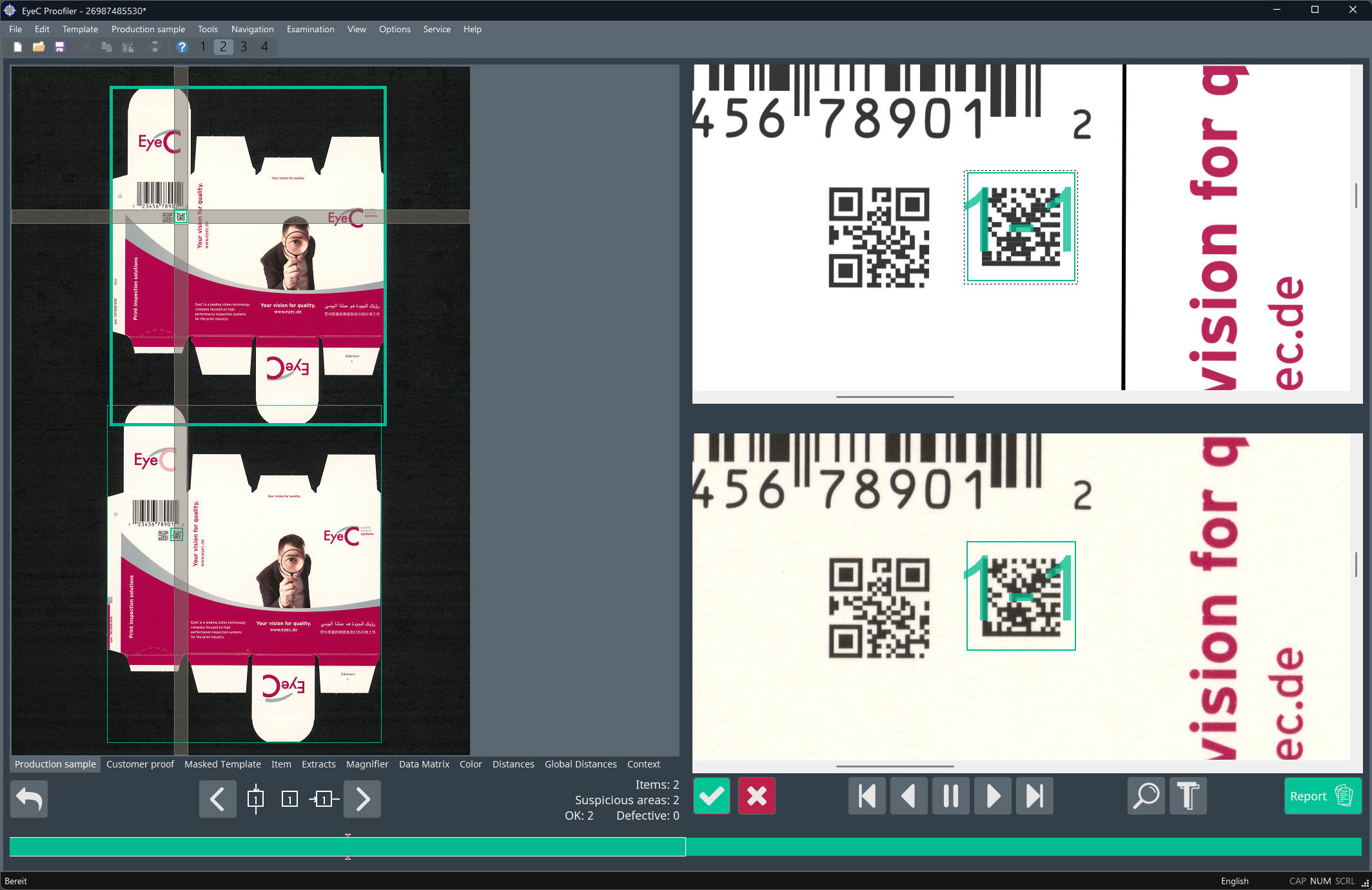

Data Matrix inspection results - production sample tab
Figure 1. Data Matrix inspection results - production sample tab

Details and statistics on Data Matrix tab

For more detailed information about the results of a Data Matrix inspection, click on a Data Matrix symbol or on the tab Data Matrix.

The Data Matrix tab is selected and shows statistics for all detected Data Matrix symbols.

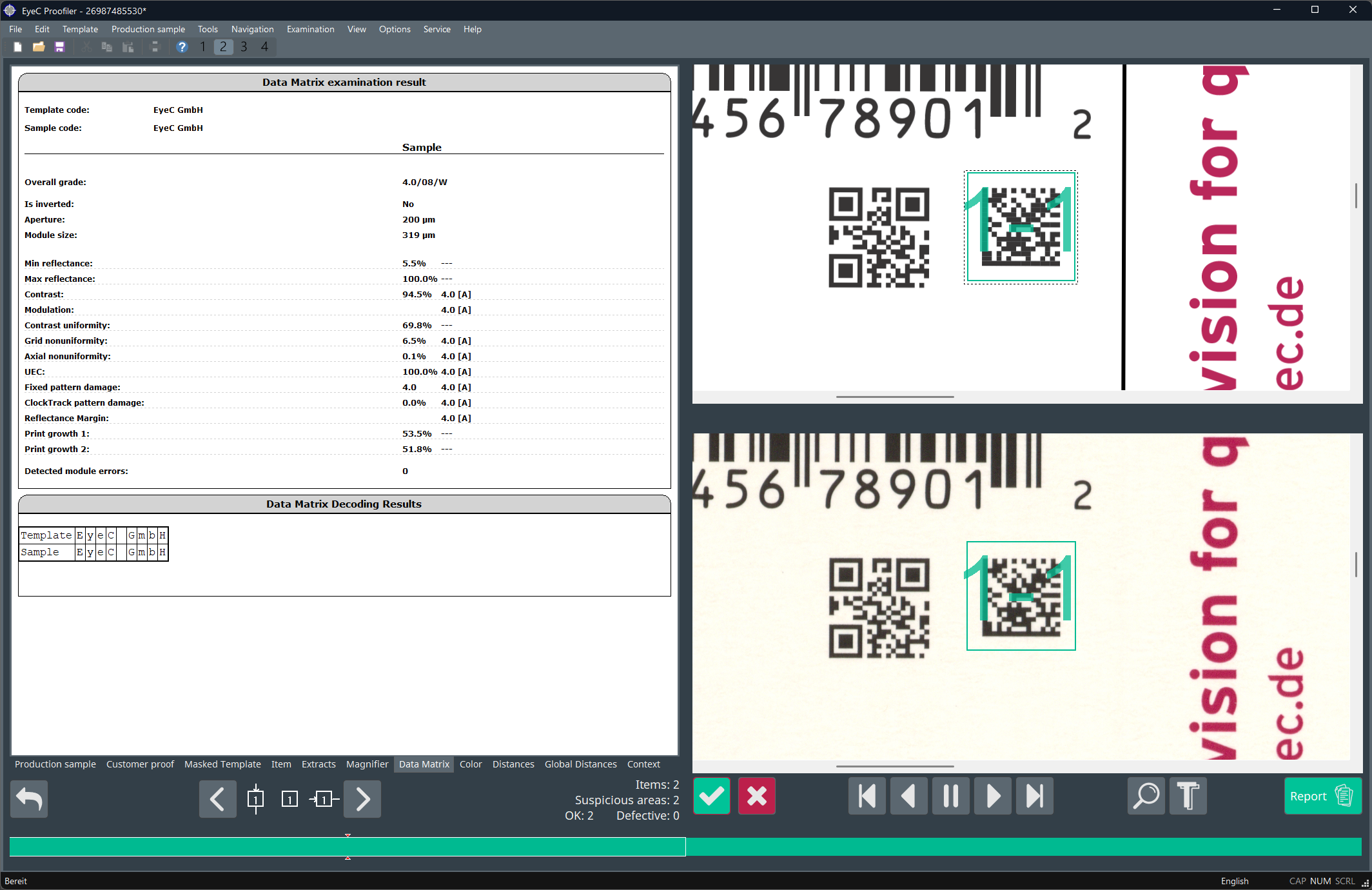

Data Matrix inspection results - Data Matrix tab
Figure 2. Data Matrix inspection results - Data Matrix tab

Further information

For further information on the results of the Data Matrix inspection refer to the EyeC Proofiler system manual.
