Inspection screen

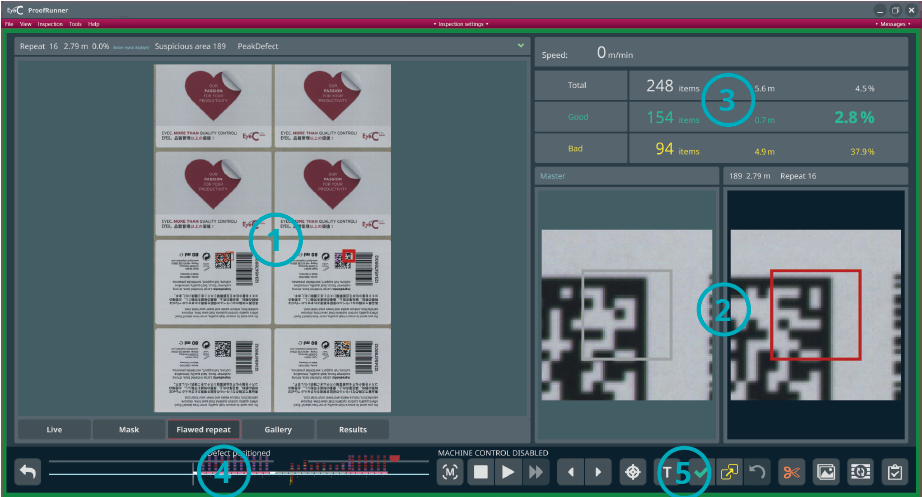

In the inspection screen the user can switch between different views to monitor and/or adjust the actual inspection. The general user interface layout can be divided into 5 parts.
| Number | Description |
|---|---|
| 1 |
Viewing tabs (definition see Viewing tab):
|
| 2 |
View with a detailed extract of the suspicious area compared to the reference image. |
| 3 | Statistical data of the printing process. See Statistics. |
| 4 | Machine animation |
| 5 |
Machine controls and buttons for evaluating suspicious areas. |
