Setting up the reference image without a PDF and defining the inspection area

  1. Click the Define items manually button. Define items manually button
    A mask with a red border appears. Small blue squares appear along the edge of the mask. Each carton is marked by a yellow border.
  2. Adjust the outer border of the mask to cover the area you want to inspect by clicking and dragging the blue squares towards or away from the center of the mask.
    Everything outside of the mask (indicated in blue) is ignored during inspection.

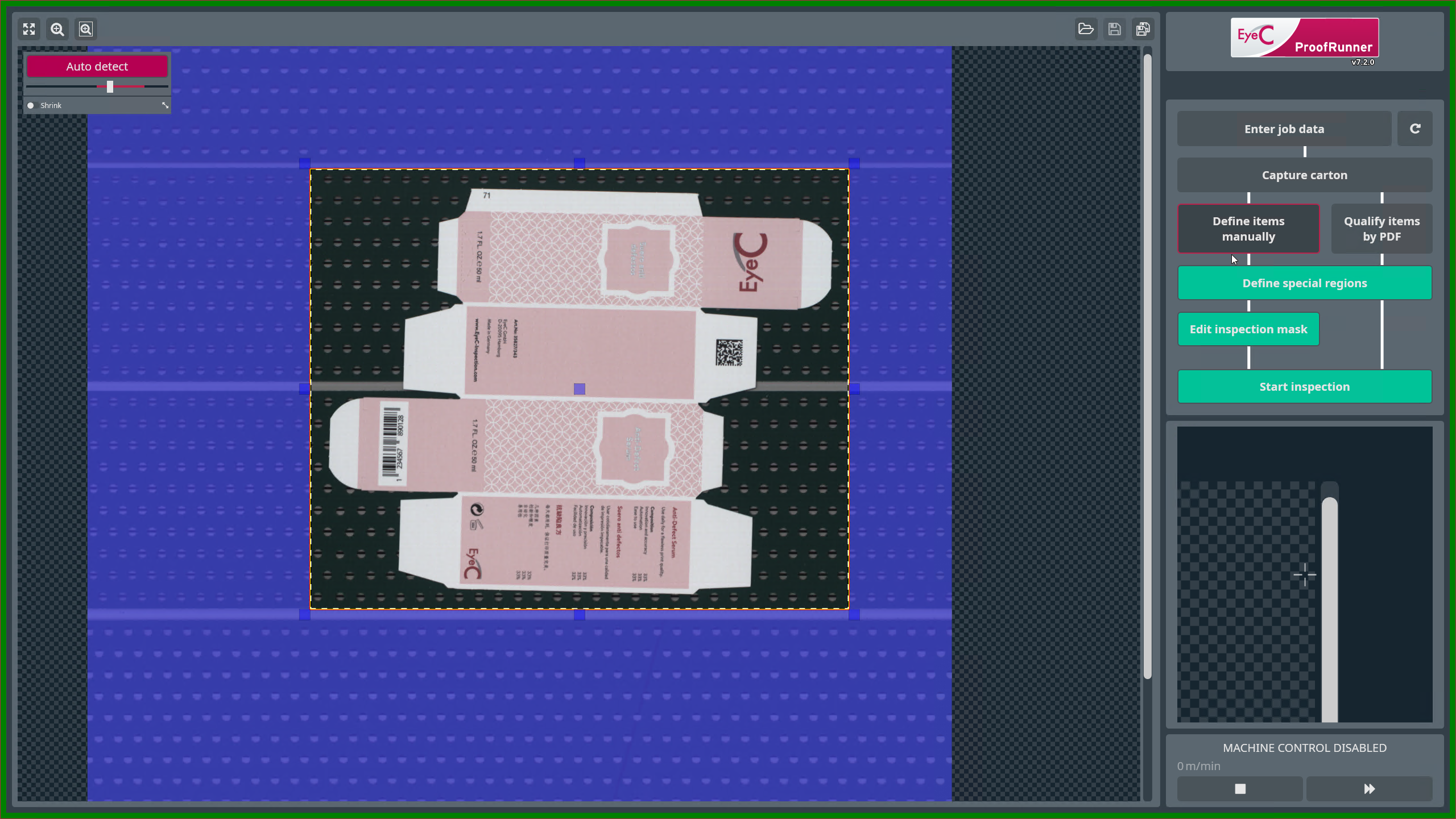

    Define items manually
    Figure 1. Job setup screen - Define items manually
    Note:

    To move the mask as a whole, click and drag the square located in the center of the mask.

  3. Make sure the distance between the folding box and the border of the mask is small as possible. See the following figure.
    See following figure.

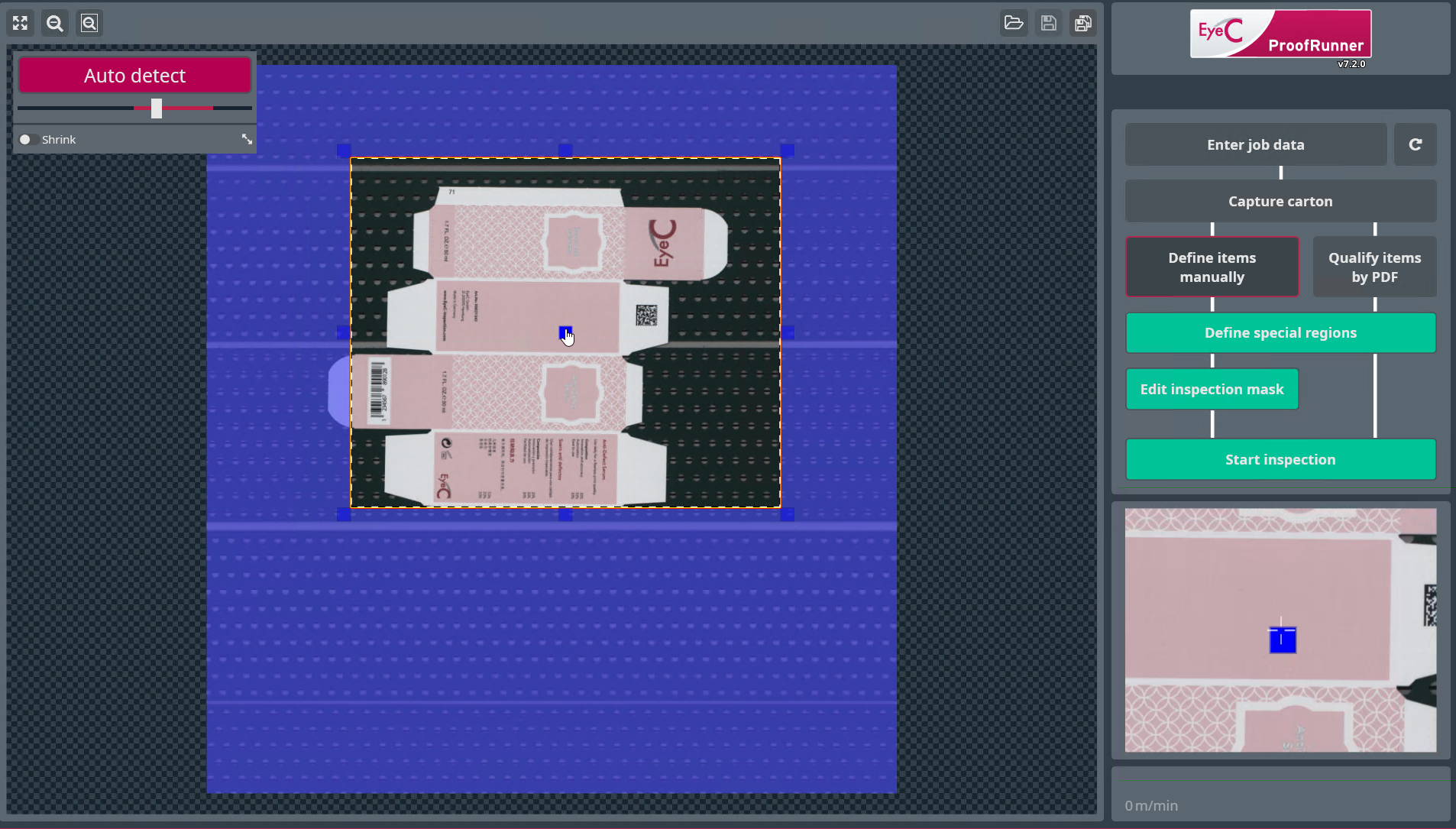

    Define manually move
    Figure 2. Job setup screen - Define items manually

For more editing options, see Editing the inspection mask.
