Editing the inspection mask

In some cases, you may want to remove certain areas within the inspection mask from inspection. The Edit inspection mask option allows you to define the inspection area to meet your needs.


Edit inspection mask

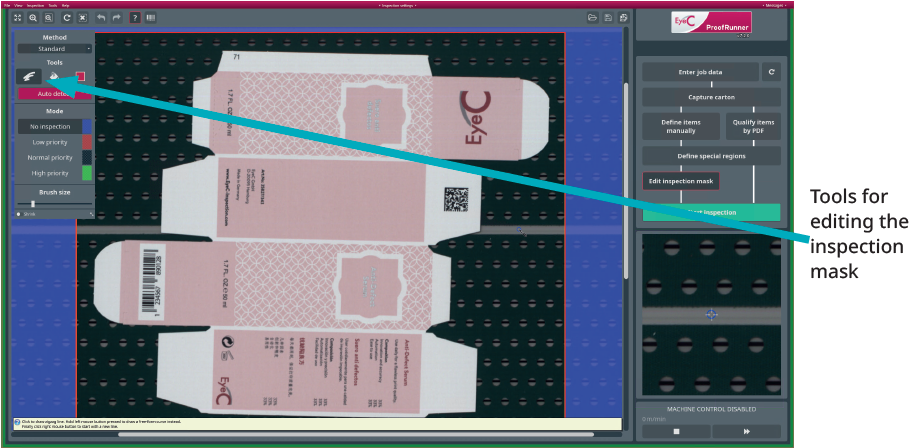

Figure 1. Edit inspection mask
  1. For editing the inspection mask, click Edit inspection mask.
    The screen changes. Tools for editing the inspection mask appear in the upper-left part of the screen. For further information on the different methods of editing the inspection mask, see the EyeC ProofRunner System Manual. Moving the mouse over individual tools opens an explanation of the respective tool. A non-inspected area can be selected by clicking, holding, and pulling a rectangle. The area which is not to be inspected is then marked blue.
    Button Description
    Reset mask button Resets the inspection mask to its original state.
    Clear button Undoes all changes in the inspection mask.
    Go back to job setup button Undoes the previously performed action.
    Redo Redoes a previously undone action.
  2. Once you have defined the mask, you are ready to start the inspection by clicking on the Start Inspection button. Start inspection button
