Automatic and manual inspection in EyeC ProofRunner Sheetfed
- The EyeC ProofRunner software in the printing process
  In this chapter, the user is introduced to the fundamental steps of the print inspection with the EyeC ProofRunner system. The EyeC ProofRunner software allows for automatic as well as manual operation. The automatic mode, by which the software responds to signals from the control system of the print machine, is the standard mode of operation. A manual operation of the software is only necessary when there is no signal from the control system of the print machine is available. The following figure shows how the software integrates into the printing process. In the main part of the manual, both the automatic inspection process and the manual process are described step by step.
- Automatic inspection process
- The manually-led inspection process
  - Setting up a print job for the manually-led inspection
  - Navigating through the manual inspection
    For the navigation through the inspection, the Operator is provided with buttons that are located in the right area of the screen.
  - Ending the inspection and creating a report

Ending the inspection and creating a report

If you have finished an inspection or you want to stop it, you have the option of creating an inspection report.

To stop the inspection, click on the Report button.
You now have 4 options:
- To return to the inspection, select Cancel.
- To end the inspection without creating a report, select Stop. → The inspection is stopped. To go back to the job setup screen, select Process data.
- To stop the inspection and create a report, select Stop + go to report. → The reporting screen is automatically displayed.
- If activated: To create an interim report without stopping the inspection, select Create interim report.
See following figure.

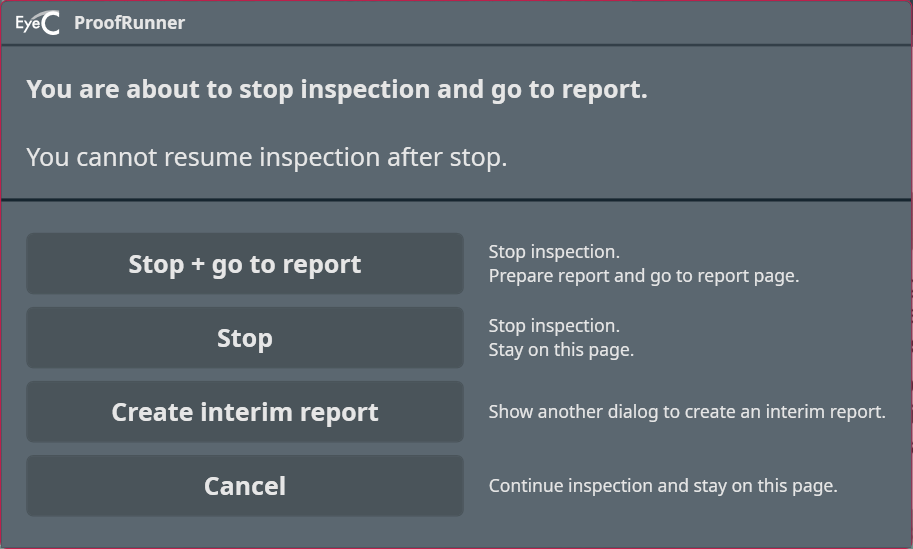

Figure 1. Stop inspection and go to report dialog
