Activating Data Matrix inspection

Setting up Data Matrix inspection is easy.

To activate the Data Matrix inspection option, go to Options > Data Matrix and select the checkbox Data Matrix examination active.
See following figure.

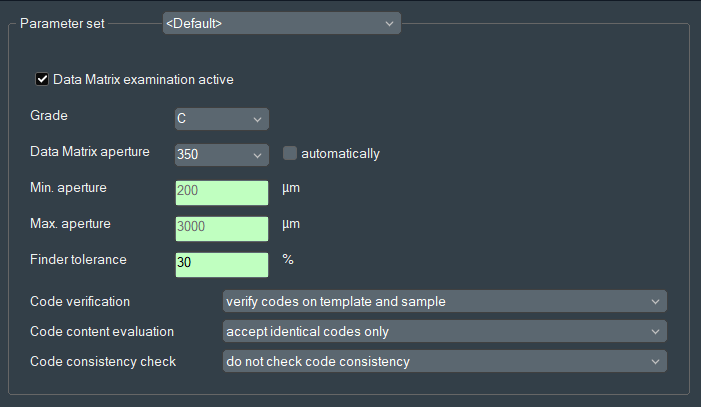

Data Matrix settings
Figure 1. Data Matrix settings
During inspection, the EyeC Proofiler detects, encodes and grades Data Matrix symbols based on the in the displayed options dialog defined parameters.
